LUPO

   LUPO is a LED uniform panel for offices.
Designed to with innovative technologies to provide always perfect, glare-free light.
At the same time, it is efficient and flexible: qualities by which the new generation stands out as contemporary office lighting system that provides perfect lighting conditions for many situations. The family provides interior solutions in three efficiency levels - high efficiency, high output and standard. Available from 30W delivering up to 4200Lm up to 60W with 7200Lm. They can be build as surface mounted, pendant or recessed. LUPO is standartly produced with dimmensions 600mm/600mm but can be customised to the conventional sizes - 300mm/300mm, 300mm/1200mm, 300mm/1500mm, 600mm/1200mm. Standard CRI is 80 but can reach to 95 on request. With color temperature from 3000K to 6000K.  Due to the high uniformity of the emitted light and the low overall brightness, the luminaire is applicable where the unified glare rating is of importance: schools, offices, hospitals, working halls.

Benefits:

> Unified Glare Rating is lower than fluorescent tube( UGR<19)

> Provides a choice of high system efficacy levels to meet different energy saving targets

> Applications are surface mounted, recessed or pendant

> DALI dimming and Emergency mode available

> Long-life LEDs reduce the maintenance and product replacement costs

Technical Specification:

Model

LUPO 30W

LUPO 60W

Input power

30W

65W

Useful quantity of light

4200 Lm

7200 Lm

UGR/ with diffused light

<19

<19

Power supply

230 VAC / PFC>90

230 VAC / PFC>90

Thermal protection

Automatic build in

Automatic build in

Working temperature

- 25 to + 40°C

- 25 to + 40°C

Environment protection

IP20

IP20

Dimensions

595x595x50

595x595x50

Weight

4 kg

4 kg

LED LM80

50 000 h

50 000 h

Application

Indoor for offices, schools, hospitals

Indoor for offices, schools, hospitals

Brochure

Laboratory mesurements

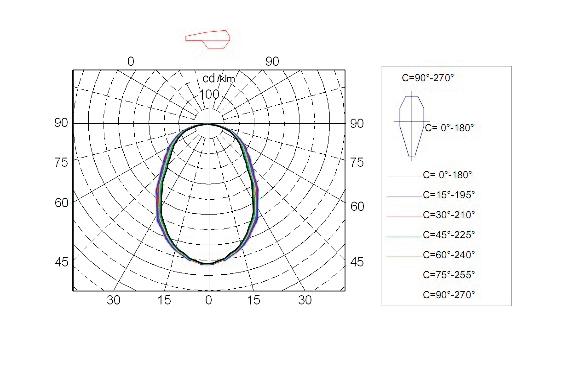

Light Characteristics
