ELLY

 ELLY is highly Efficient LED Luminaire that will last for Years.
Designed as a modular fixture it can be fully customized.
The family provides solutions for street, residential, high bay, solar and tunnel lightning with high output (red) - up to 12 000Lm, high efficiency
(light grey) - up to 145 Lm/W, green energy (green) - dimmable, powered by battery from 10 to 30 VDC and standard (black). All the family members come in 4 sizes. The standard CRI is 70 but can reach to 95 on request. With color temperature from 2700K to 6500K.

The material save environment friendly design provides up to 4000 Lm out of 30W from only 1.8 kg.
Great light distribution thanks to latest generation Ledil optics pursuant with EU street lightning standards EN 13201, .
The innovative model design without any ribs or barrier obstacles in the way of the rain water provides self cleaning.
It is also highly cost effective build with world leading producers of LED - CREE, OSRAM; driver - Tridonic, Philips, Osram; lens - Ledil,
sealing adhesives - Dau Corning; housing - high-grade extruded aluminum.

Benefits:

> Delivers reliable performance and significant energy savings

> Provides a choice of high system efficacy levels to meet different energy saving targets

> Excellent thermal management thanks to patent pending convection tunnels

> High efficiency - up to 145 Lm/W from the fixture

> Positive impact on environment - directed light (no light pollution), no UV- and IR- irradiation

> Low maintenance costs

Technical Specification:

Model

ELLY

ELLY 2

ELLY 3

ELLY G

ELLY
B

ELLY
R

ELLY
LG

ELLY
B

ELLY
R

ELLY
LG

ELLY
B

ELLY
R

ELLY
LG

ELLY
G10

ELLY
G20

ELLY
G30

Input power

28W

33W

22W

55W

72W

45W

82W

100W

70W

10W

20W

30W

Useful quantity of light

3300
Lm

3700
Lm

3000
Lm

6750
Lm

8150
Lm

6000
Lm

10100
Lm

11300
Lm

9000
Lm

1350
Lm

2700
Lm

4000
Lm

Dimensions

275x160x75

515x160x75

755x160x75

250x160x75

Weight

2kg

3.9kg

5.8kg

1.8kg

Power supply

230 VAC / PFC>90

10-30VDC PWM dimmable

Installation height

6 meters

LEDs used

CREE / OSRAM

Mounting method

Pole 60mm / surface or pendant

Lenses

LEDiL covering EN 13201 srandard

Thermal protection

automatic build in

Working temperature

- 25 to + 40°C / - 40 to + 50°C optional

Environment protection

Ingress Protection IP65

LED LM80

100 000 hours

Application

street, residential, solar / high bay, tunnel lightning

Brochure

Laboratory mesurements

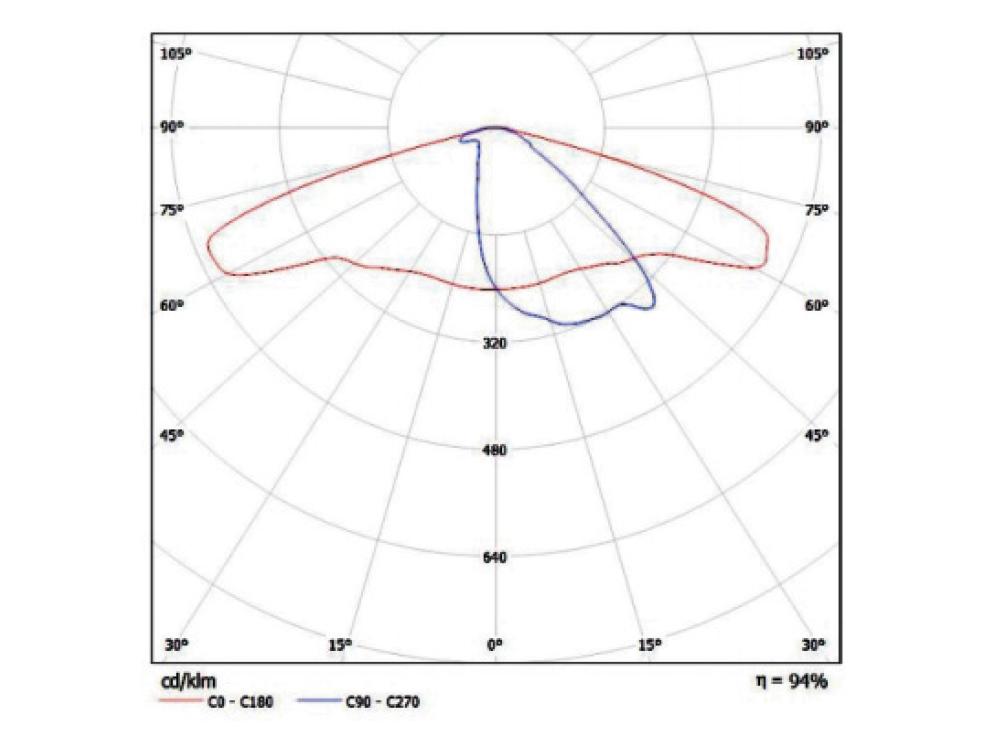

Light Characteristics
