LED FORK 2424HD+TW

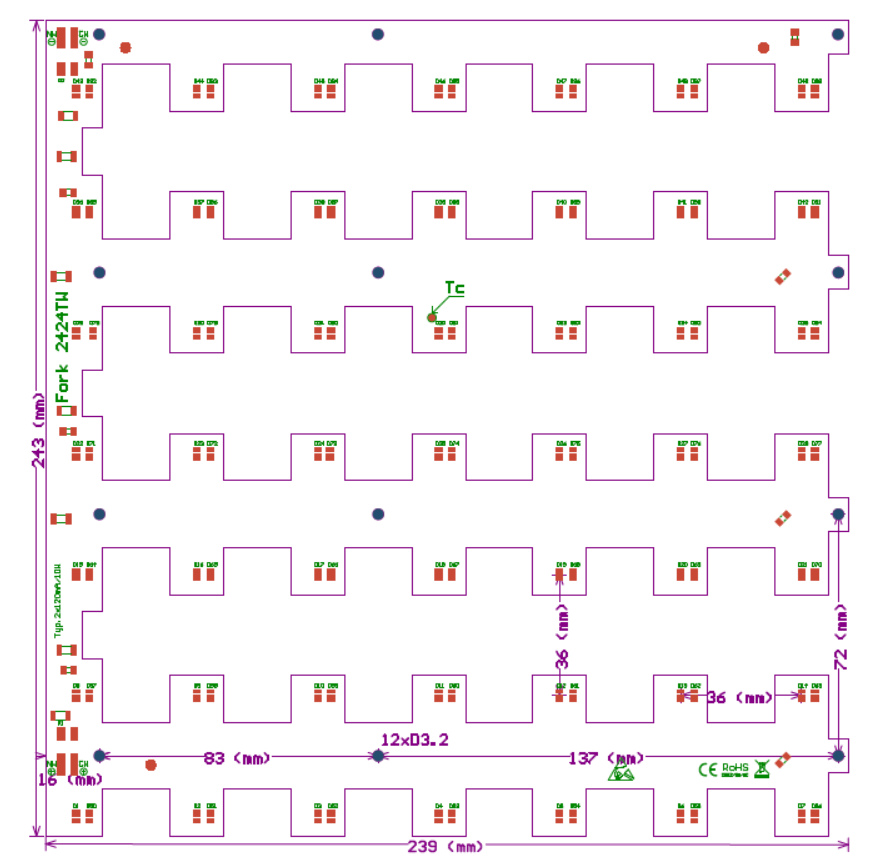

Fork 2424HD modules with Samsung/Osram LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in panel luminaires with diffused light. The product range covers colour temperatures from 2200K to 6500K with CRI > 80 and module efficiency of up to 191 lm/W. The module is driven by constant current max 980mA with voltage of max 22V. The design is improved for simple installation. The module family covers the standard –243mm/239mm – used in the usual 30/60, 60/60 30/120 panels with diffused light. Now added Tunable white module to the family with standard 2 channels with options for tuning from 2200K to 6500K.

 Benefits:

> Ideal for panel lights

> Luminous flux range from 1600 lm – 6300 lm

> Efficacy of the module up to 195 lm/W

> High colour rendering index CRI > 80

> Small colour tolerance (MacAdam 4)

> Small luminous flux tolerances

> Colour temperatures from 2200K to 6500K

> Tunable White option

> Push terminals for quick and simple wiring of LED modules

> Long life-time: 40,000 hours

Technical Specification:

Fork 2424HD+TW

Photo metric code

Typ. luminous flux at tp = 25  °C

Typ. luminous flux at tp = 45  °C

Typ. Voltage at tp = 25  °C

Typ. Voltage at tp = 45  °C

Typ. power consumption at tp = 25  °C

Typ. power consumption at tp = 45  °C

Luminous efficacy module at tp = 25  °C

Luminous efficacy module at tp = 45  °C

Colour rendering index CRI

 High Efficiency at 250mA/channel

830

1674 Lm

1618 Lm

18.34 V

18.2 V

9.17 W

9.1 W

183 Lm/W

178 Lm/W

>80

840

1764 Lm

1706 Lm

18.34 V

18.2 V

9.17 W

9.1 W

193 Lm/W

189 Lm/W

>80

850

1790 Lm

1730 Lm

 18.34 V

18.2 V

9.17 W

9.1 W

195 Lm/W

190 Lm/W

>80

Typical current 350 mA/channel

830

2312 Lm

2244 Lm

18.62 V

18.48 V

13.04 W

12.94 W

178 Lm/W

173 Lm/W

>80

840

2448 Lm

2366 Lm

18.62 V

18.48 V

13.04 W

12.94 W

188 Lm/W

183 Lm/W

>80

850

2482 Lm

2402 Lm

18.62 V

18.48 V

13.04 W

12.94 W

191 Lm/W

186 Lm/W

>80

High output at 980mA/channel

830

5888 Lm

5690 Lm

19.74 V

19.6 V

38.7 W

38.42 W

152 Lm/W

148 Lm/W

>80

840

6208 Lm

5998 Lm

19.74 V

19.6 V

38.7 W

38.42 W

160 Lm/W

156 Lm/W

>80

850

6298 Lm

6086 Lm

19.74 V

19.6 V

38.7 W

38.42 W

163 Lm/W

158 Lm/W

>80

Tunable White at 350mA/channel

827

2250 Lm

2174 Lm

18.62 V

18.48 V

13.04 W

12.94 W

173 Lm/W

168 Lm/W

>80

830

2312 Lm

2244 Lm

18.62 V

18.48 V

13.04 W

12.94 W

178 Lm/W

173 Lm/W

>80

850

2482 Lm

2402 Lm

18.62 V

18.48 V

13.04 W

12.94 W

191 Lm/W

186 Lm/W

>80

865

2448 Lm

2366 Lm

18.62 V

18.48 V

13.04 W

12.94 W

188 Lm/W

183 Lm/W

>80
